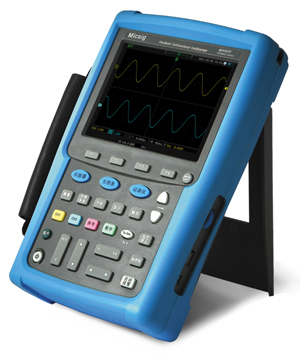

600 Series Handheld Multi-function Oscilloscope
update：2012-5-18 4:04:43Posted：Introduction
Source：micsigHits：
Complete electrical isolation, more safety
Complete electrical isolation between CH1, CH2 and multimeter channel. Connect to three circuits simultaneously without considering the electrical relations.
Operate by touch
Touch operation allows the waveform zooming, moving and menu operating to become arbitrary. Even though the oscilloscope has no complex operation panel like desktop oscilloscope, it possesses the high operation performance which desktop ones can not match.
3D Waveform display
3D Waveform display function redefines the waveform display, oscilloscope counts every sample data in order to display them with different colors or brightness, so that 2D display( time and amplitude) turns into a 3D display( plus dimension of occurrence frequency). So it becomes clear to distinguish the occasional signal from repeating signal.
For occasional signal, usually do not expect it flash off and become hardly to detect. You can keep it longer on screen, such persistence does not affect the waveform of the real-time updates, just like a CRT monitor, every data faded out gradually.
The highest waveform refresh rate in its field
In general, colored afterglow function is designed for rebuild waveform and retain waveform to observe signal details; high refresh rate function is committed to resolve how to capture all the signal details.
Oscilloscope with high refresh rate just like high-speed video camera, which captures fast moving objects into sequence of pictures, each picture with undetectable change, so you can see the details of the movement; high refresh rate oscilloscope captures every moment of the signal changes over time, every moment is pushed onto screen, rather than ordinary oscilloscope, in most cases, signals escape from our eyes.
FFT, high-definition video trigger, measurement functions
Serial bus decoding
serial bus decoding can can trigger and analyze serial buses such as SPI, I2C, CAN, LIN, RS-232/UART, and show frame details which help engineer to debug bus error.
Data Logger
Support three recording modes: The multimeter recording, the oscilloscope measurement recording and oscilloscope waveform recording. Support external storage extension, with no limit to record length.
Multimeter
Auto range; relative measurement(zero reference); maximum, minimum, average measurement.
| Model：MS620 | |
|---|---|
| Bandwidth | 200MHz |
| Rise time | ≤1.75ns |
| Real time sampling rate | Single channel :2GS/s,dual-channels:1GS/s |
| Memory depth | Single channel :48M,dual-channels:24M |
| Max refresh rate | 500K wfrms/s |
| Horizontal System | |
| Channel numbers | 2 oscilloscope channels,1 multimeter channel |
| Bandwidth limitation | 20MHz |
| Input coupling | DC,AC,GND |
| Input impedance | Parallel 1MΩ±1% with 15pF±3pF |
| Input sensitivity range | 5mV/div~50V/div |
| Vertical resolution | 9 bits |
| BNC input max voltage | CAT Ⅲ 300V Max 600V |
| Isolation voltage of each channel | CAT Ⅱ1000V CAT Ⅲ 600V |
| BNC reference to earth-float-input | CAT Ⅱ1000V CAT Ⅲ 600V |
| Vertical System | |
| Time base range | 4ns/div~10s/div |
| Time base delay time range | -12 divs ~50s |
| Time base precision | 20ppm |
| Sampling modes | Normal, average, peak, envelope |
| Waveform dynamic recording | Unlimited storage time |
| Reference waveform | 4 ref waveform. Support external storage(flash disk) |
| Trigger System | |
| Trigger types | Edge, Pulse, Logic, Video(PAL、NTSC、SECAM、720P、1080I、1080P), Serial bus(RS-232/UART、LIN、CAN、SPI、I2C) |
| Trigger coupling | DC、AC、High-frequency suppression、Low-frequency suppression, Noise suppression |
| Trigger modes | Auto, normal, single |
| Trigger source | CH1,CH2,External |
| Trigger inhibition range | 200ns~10s |
| Measurement | |
| Automatic measurements | 31 types |
| Cursor types | Horizontal cursor, vertical cursor, cross cursor |
| Maths | |
| Dual-waveform | + , - , * , / |
| FFT window setting | Rectangular, Hamming, Blackman-Harris, Hanning |
| Display Characteristics | |
| Screen | 5.7 inch TFT LCD touch screen |
| Resolution | 640×480 |
| Grid of Waveform Display Zone | Horizontal 12 divs × vertical 8 divs |
| Form | YT and XY |
| Interpolation method | Sin（×）/× |
| Afterglow last time | Auto, 100ms~10s or ∞ |
| I/O Port | |
| Mini USB2.0 | to PC |
| USB2.0 | to Flash disk |
| Multimeter | |
| Measurement types | 12 physical measurements ,such as voltage, current, resistance, capacitance, diode, temperature, frequency , etc. |
| Measurement precision | 5 bits |
| Measurement display | Max, average, min, values with time stamp；relative measurement |
| Data Logger | |
| Record content |
Multimeter recording Oscilloscope measurements recording Oscilloscope waveform recording |
| Record base range |
Multimeter:10s/div~20min/div oscilloscope measurement: 10s/div~20min/div oscilloscope waveform:10ms~2min/div |
| Record time | 49s~ unlimited |
| Power Supply | |
| Power adapter | Input:100-240VAC,50-60HZ,2A; Output:12VDC,5A |
| Battery | Capacity:7.4V/600mAh, Work time:4~5 hours |
| Work Environment | |
| Temperature | -20℃ ~ +50℃ |
| Humidity | <85%RH |
| Specifications | |
| Size | 254mm*160mm*60mm |
| Weight | Instrument: 1395g (no battery), accessories(standard): 691g,battery(standard): 276g |
Standard Accessories:
►500MHz, 10X Probe
►Multimeter signal cables
►7.4V/6000mAh Li-ion battery
►Power adapter
►USB cable
Optional accessory:
►1GHz Oscilloscopes active probe
►BNC transter connection
►BNC cable
►BNC Conversion adapter
►Alligator clip
►7.4V/9000mAh li-ion battery
►AC/DC current clamps
►Instrument suitcase
►Instrument bag
